製品詳細
証明: CCC, ISO9001, CE
支払及び船積みの言葉
Minimum Order Quantity: 50
価格: 52.5
Model NO.: |
HA80 |
Open Style: |
Rolling |
Opening Type: |
With Remote Control |
Special Function: |
Security |
Color: |
Any Ral Color |
Position: |
Industrial |
Surface Finishing: |
Finished |
Raw Material: |
Aluminum Alloy |
Mode of Operation: |
Rolling/Roller/Roll up |
Applicantion: |
Everywhere You Want |
Security: |
High Level |
Quality: |
High |
Transport Package: |
as Request |
Specification: |
80mm |
Trademark: |
HOFUL |
Origin: |
Made in China |
HS Code: |
761010 |
Production Capacity: |
5000 Square Meters/ Month |
Model NO.: |
HA80 |
Open Style: |
Rolling |
Opening Type: |
With Remote Control |
Special Function: |
Security |
Color: |
Any Ral Color |
Position: |
Industrial |
Surface Finishing: |
Finished |
Raw Material: |
Aluminum Alloy |
Mode of Operation: |
Rolling/Roller/Roll up |
Applicantion: |
Everywhere You Want |
Security: |
High Level |
Quality: |
High |
Transport Package: |
as Request |
Specification: |
80mm |
Trademark: |
HOFUL |
Origin: |
Made in China |
HS Code: |
761010 |
Production Capacity: |
5000 Square Meters/ Month |

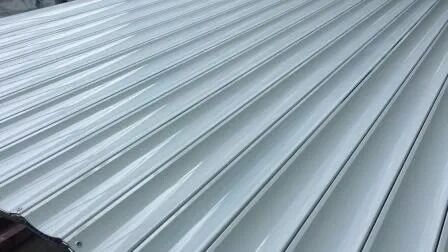

| Double Skinned Aluminum Slat (HA80) | Width: 80mm Thickness: 1.0mm, 1.2mm Standard Colors: white, beige Other RAL colors available upon request |
| Aluminum Bottom Rail | Made of extruded aluminum |
| Aluminum Guide Rail | Made of heavy duty extruded aluminum "U" guide rail, 80*36mm or 90*36mm Width*Depth*thickness Includes brush strip for quiet operation |
| Switch Button | Switch button for operating rolling shutter with stainless steel cover box |
| Endless Chain | Manual operation capability during power outages |
| Rolling Shutter Motor Options |
Option 1: HOFUL brand side motor, CE certified Capacities: 400KG, 600KG, 800KG, 1000KG, 1300KG, 1500KG, 2000KG Voltage/Frequency: 220V/50Hz, 380V/50Hz, 110V/60Hz Option 2: DOOYA tubular motor, CE certified Capacities: 60N, 80N, 120N, 140N, 230N, 300N Voltage/Frequency: 230V/50Hz, 120V/60Hz |
| Shutter Box (Hood) | Made of galvanized steel or aluminum (optional) |
| Shaft (Barrel) | Made of galvanized steel Sizes: 3", 5", 6", 8", 10" (depending on door size) |
| Bearing | Retractable design, welded according to rolling shutter width |
| End Plate | Made of heavy duty steel, fixed on both sides of the shaft |
| End Clip | Made of plastic, fixed on both sides of aluminum slats to prevent lateral movement |
| Safety and Security |
| Theft Prevention |
| Heat Insulation |
| Weather Resistant |
| Rust Proof |
| Sound Insulation |
